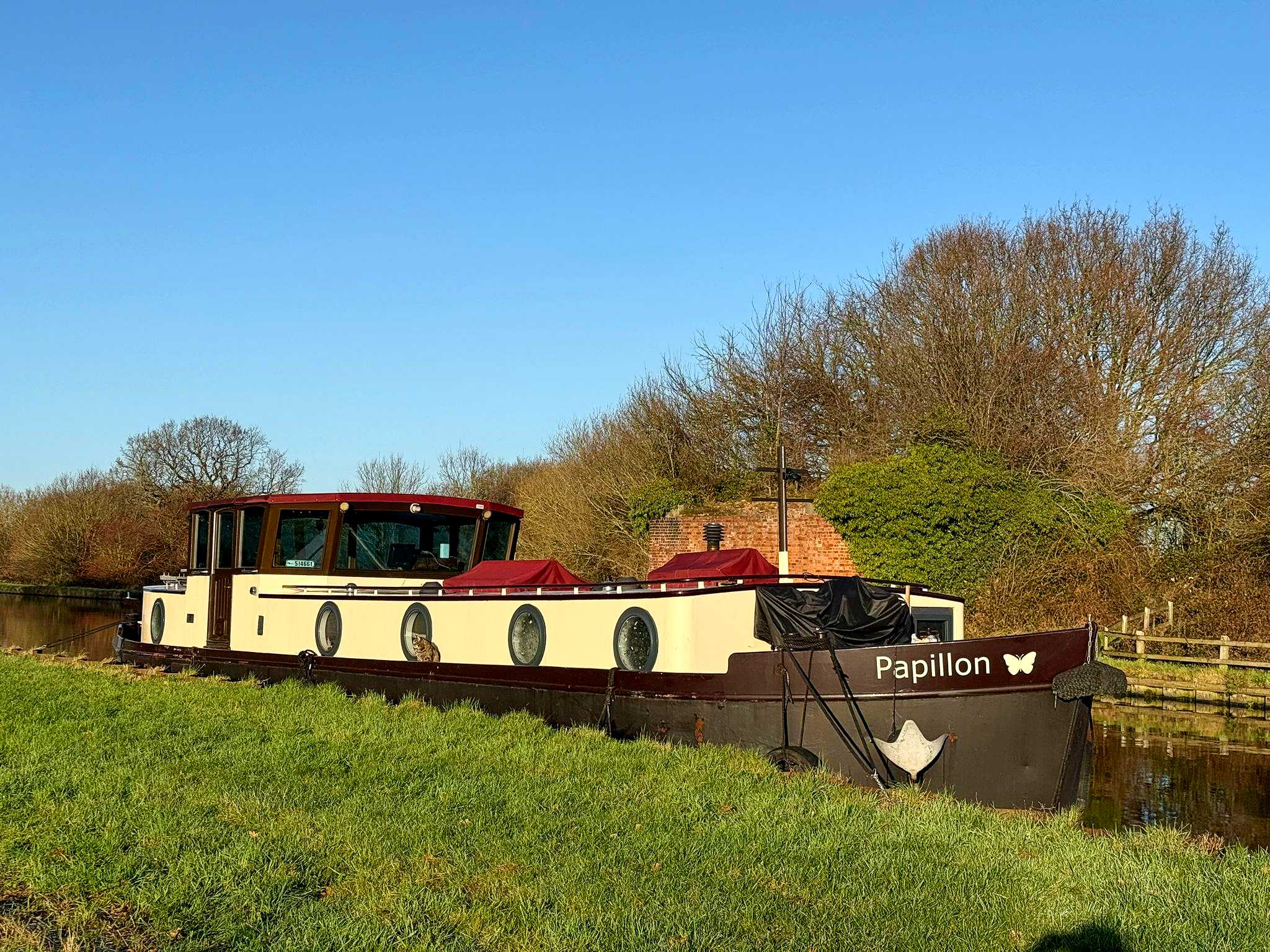

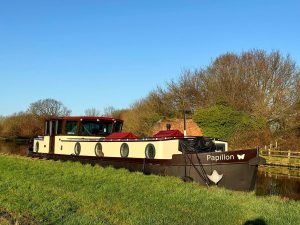

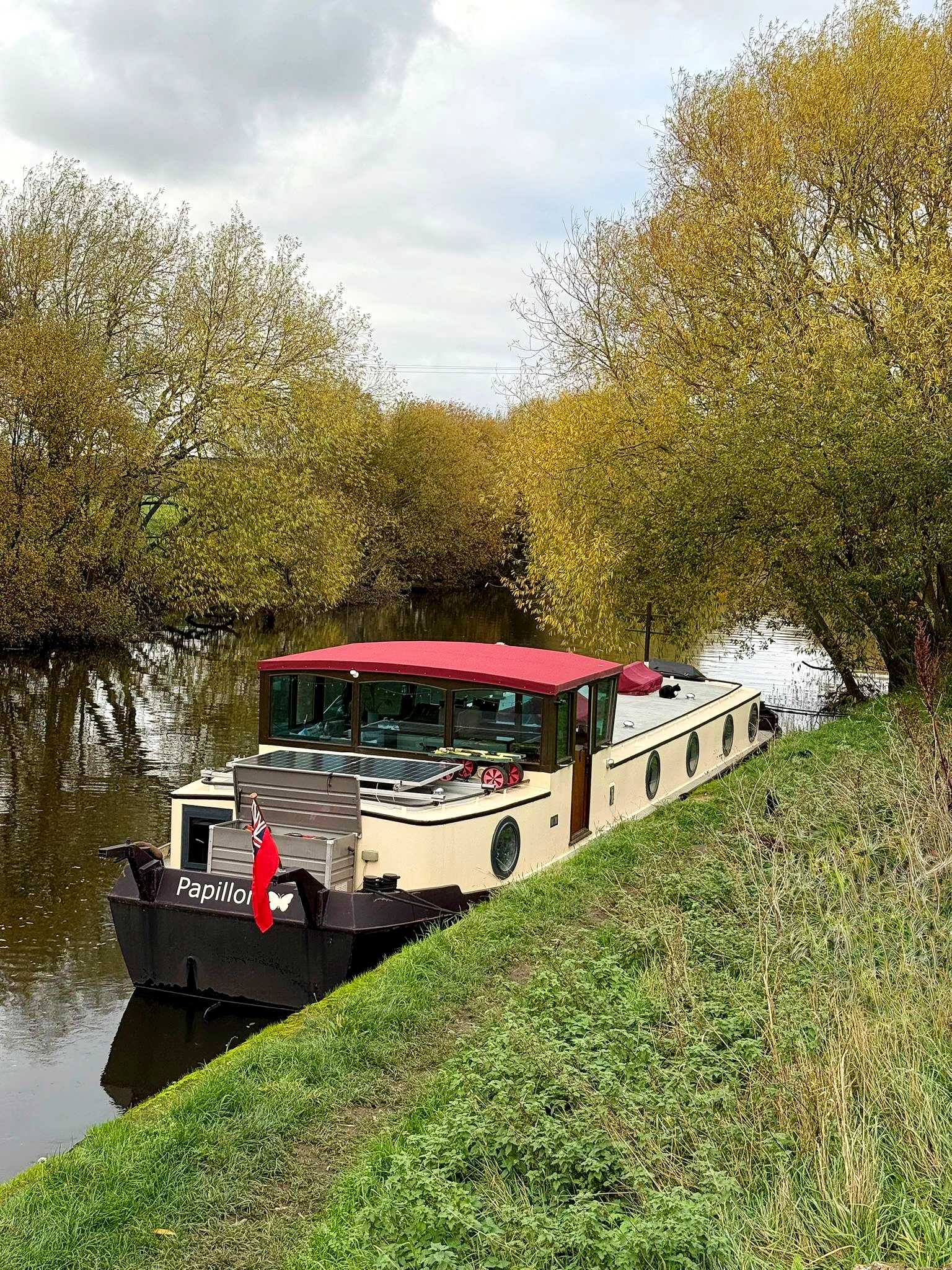

Papillon

£109,950

Laying offsite – viewings by appointment only

K E Y F A C T S

TYPE: Dutch Barge
LENGTH: 58FT
WIDTH: 13'6FT
ENGINE: Ford Lehman 6.6L
Builder: Pinder
LAYOUT: Aft Cabin
read more

Specification:

HULL, ENGINE & EXTERIOR

Length: 58'

Width: 13' 6"

Builder: Pinder

Year: 2000

Stern Style: Dutch Barge

Construction: Steel

Bow Thruster: No - tube fitted

Pram Cover: NA

No. of Anodes: 6 + 2 on rudder

Steel Spec: 11/8/6

Engine Model: Ford Lehman 6.6L

Gearbox Model: Velvet Drive 72C

Horsepower: 120

No. Alternators: 1

Engine Hours: 1331 approx

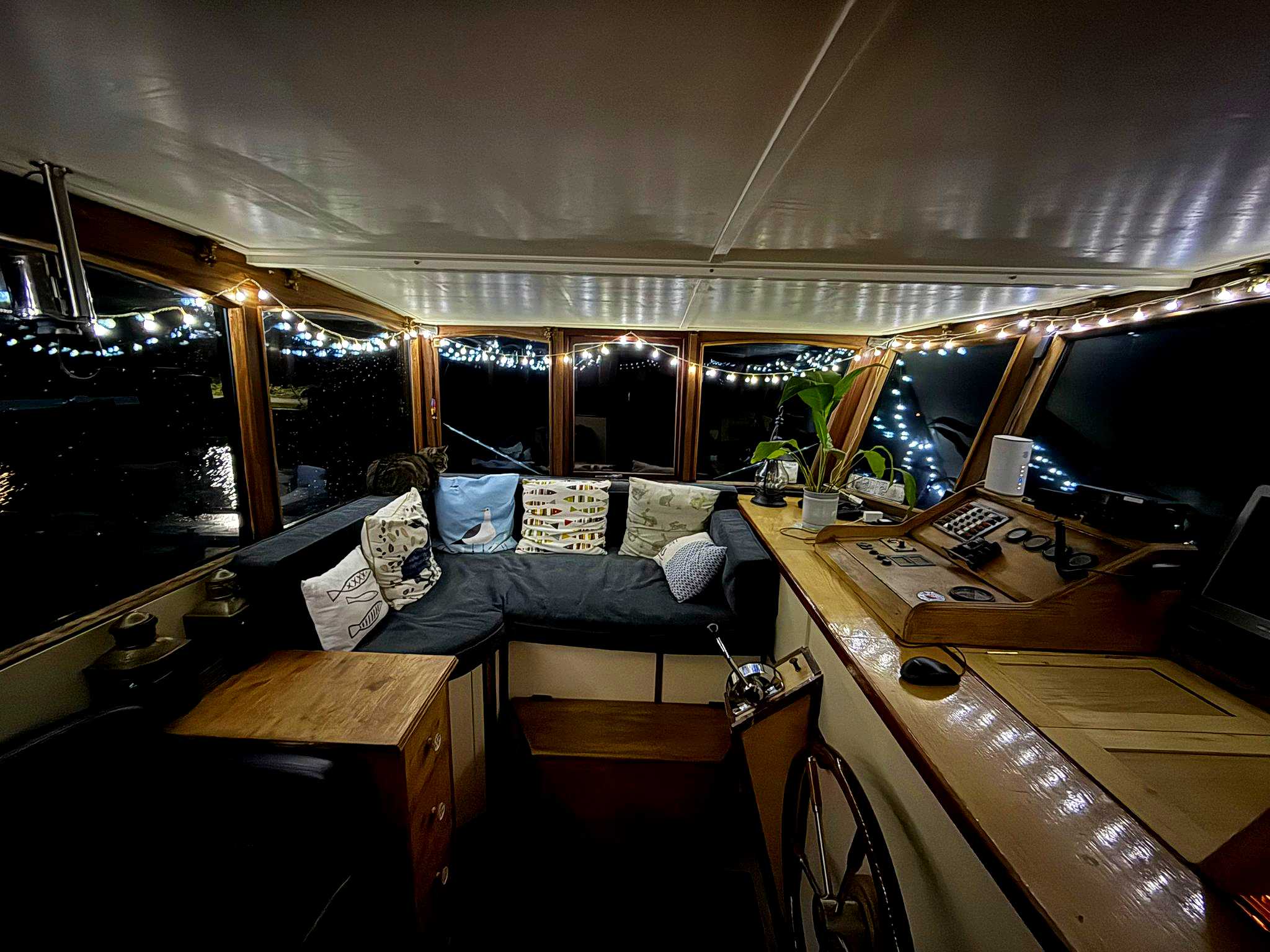

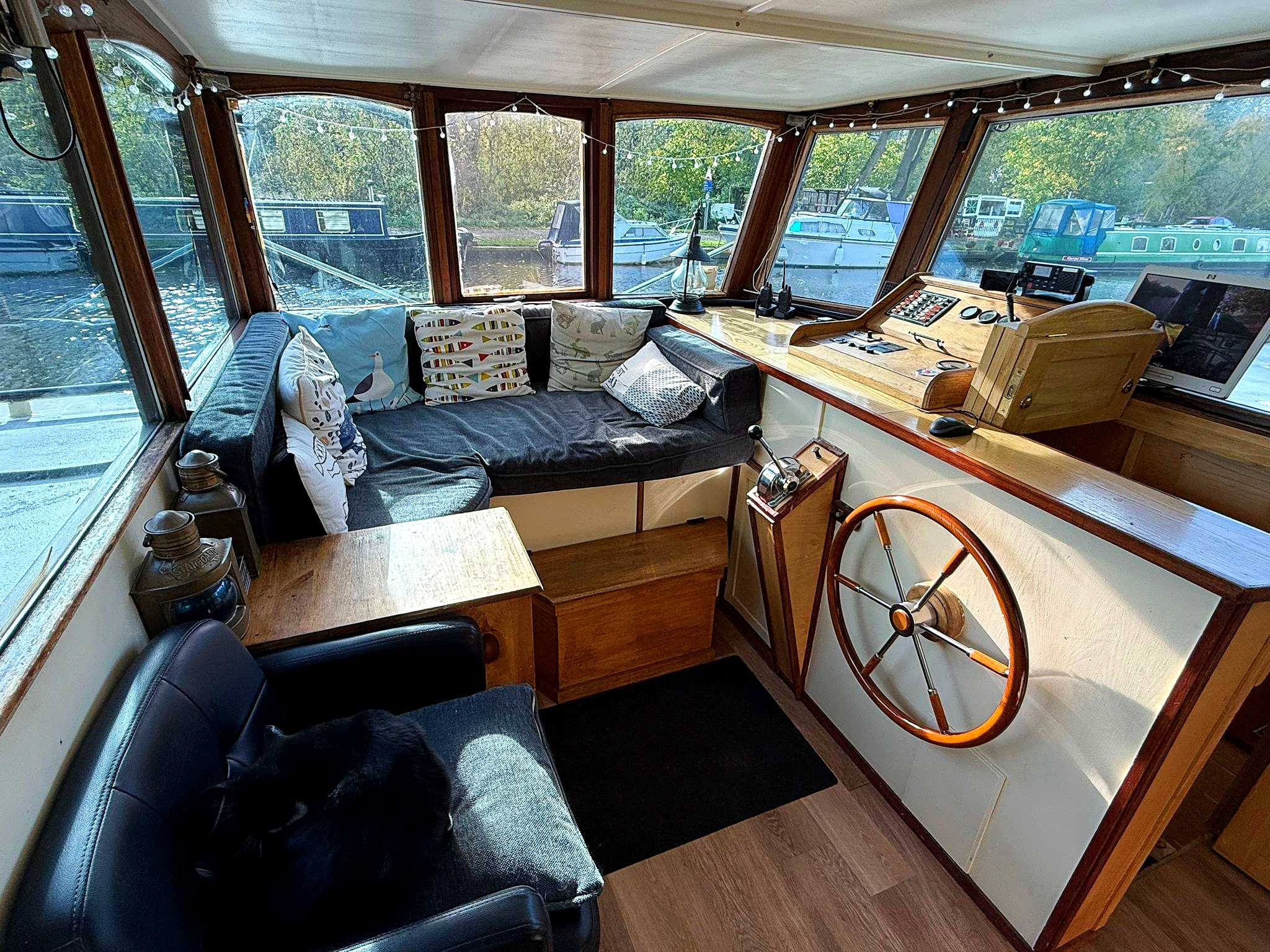

Cratch Cover: No - Hardwood Wheelhouse

Type of Blacking: Bitumen

Diesel Capacity: 2 x 400L tanks

Notes: Three external colour/IR cameras fitted to support close navigation. One camera in the engine bay. Freshwater closed circulating cooling system. Hull survey completed March 2024. Air draft 9ft. Draft 3ft.

FITOUT

Fitted by: Previous Owner

Layout: Aft Cabin

Fixed Berths: One fixed double bedroom

Windows: 12 Double Glazed with solar protective glass. Double glazed wheelhouse

Make up Berths: One double in saloon

Insulation: Rockwool

Cabin Lining: Wood

Flooring: Laminate

ELECTRICS

230V Landline: Yes

Inverter: Victron Phoenix Multiplus 3000W

Domestic Batteries: 3 x 280Ah LiPro - installed December 2025

Generator: Honda EU30is - last serviced summer 2025

Solar Panels: 1 x 230W to Epever MPPT

Starter Batteries: 2 x Lead Acid

Notes: LED lighting throughout. Victron DC-DC charger. Victron Smart Shunt installed April 2025. Engine bay lit via LED lighting switch from wheelhouse. Eco-Worthy Battery monitor installed in the engine bay.

HEATING & HOT WATER

Central Heating: Yes - Alde Compact 3010

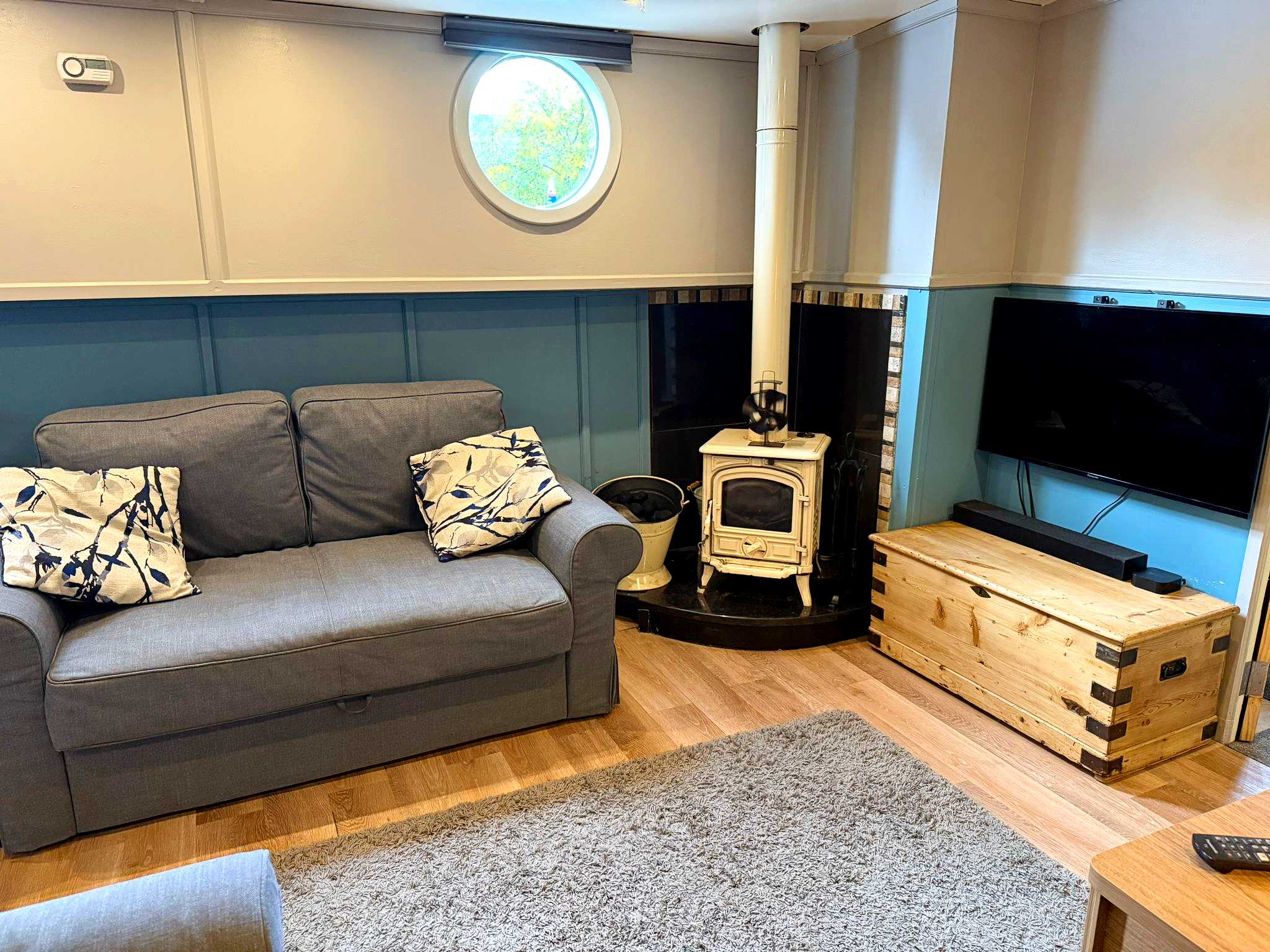

Solid Fuel Stove: 3KW

Water Tank Capacity: 1400L

Calorifier: Yes

No. of Radiators: 4 plus 1 towel rail installed in April 2025

Hot Water Source: Engine calorifier and immersion

Water Tank Material: Copper

Calorifier Capacity: Unknown

Notes: ALDE boiler is programmable and thermostatically controlled. Grill base in multifuel burner is functional but would benefit from being replaced.

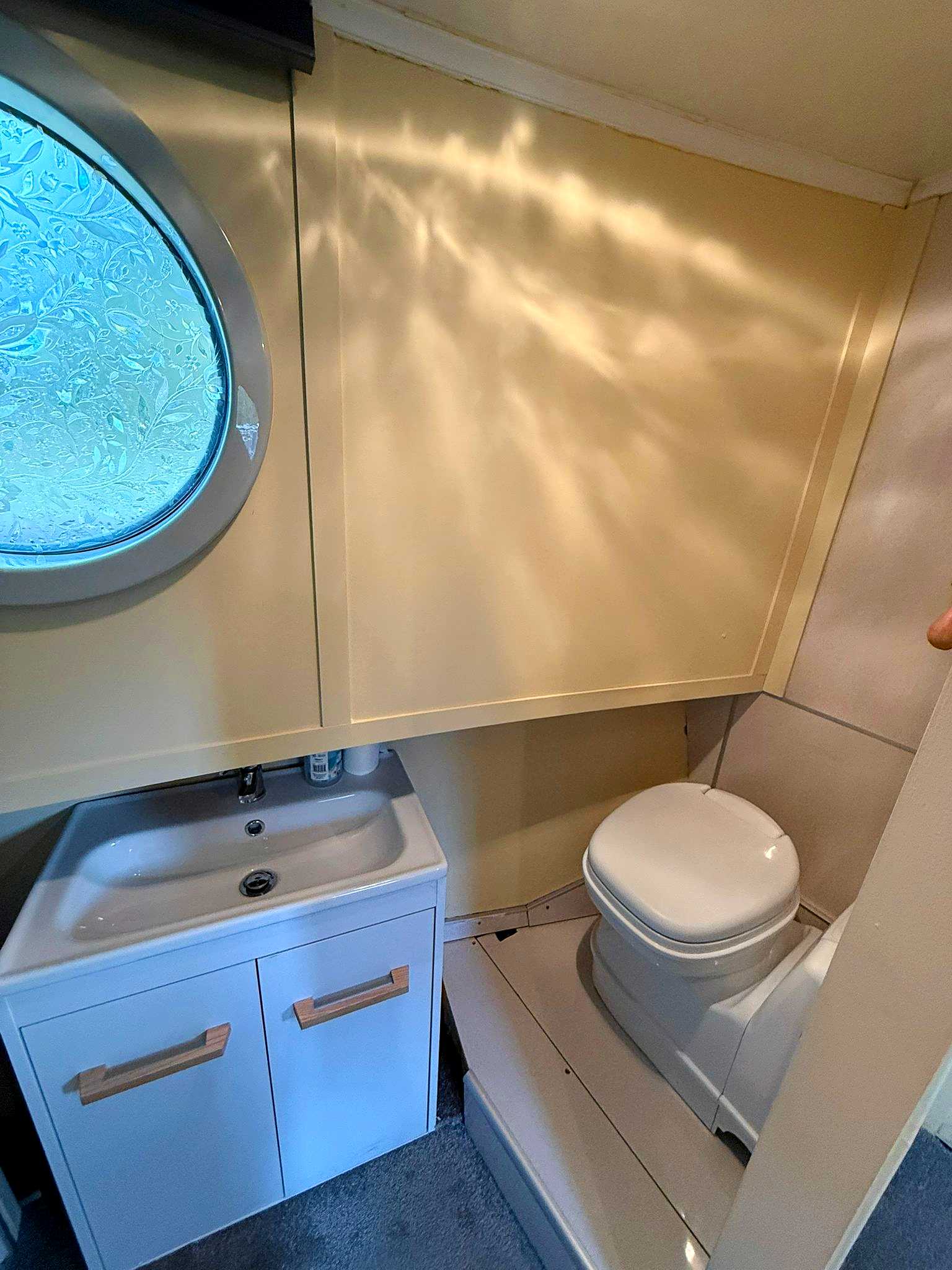

BATHROOM

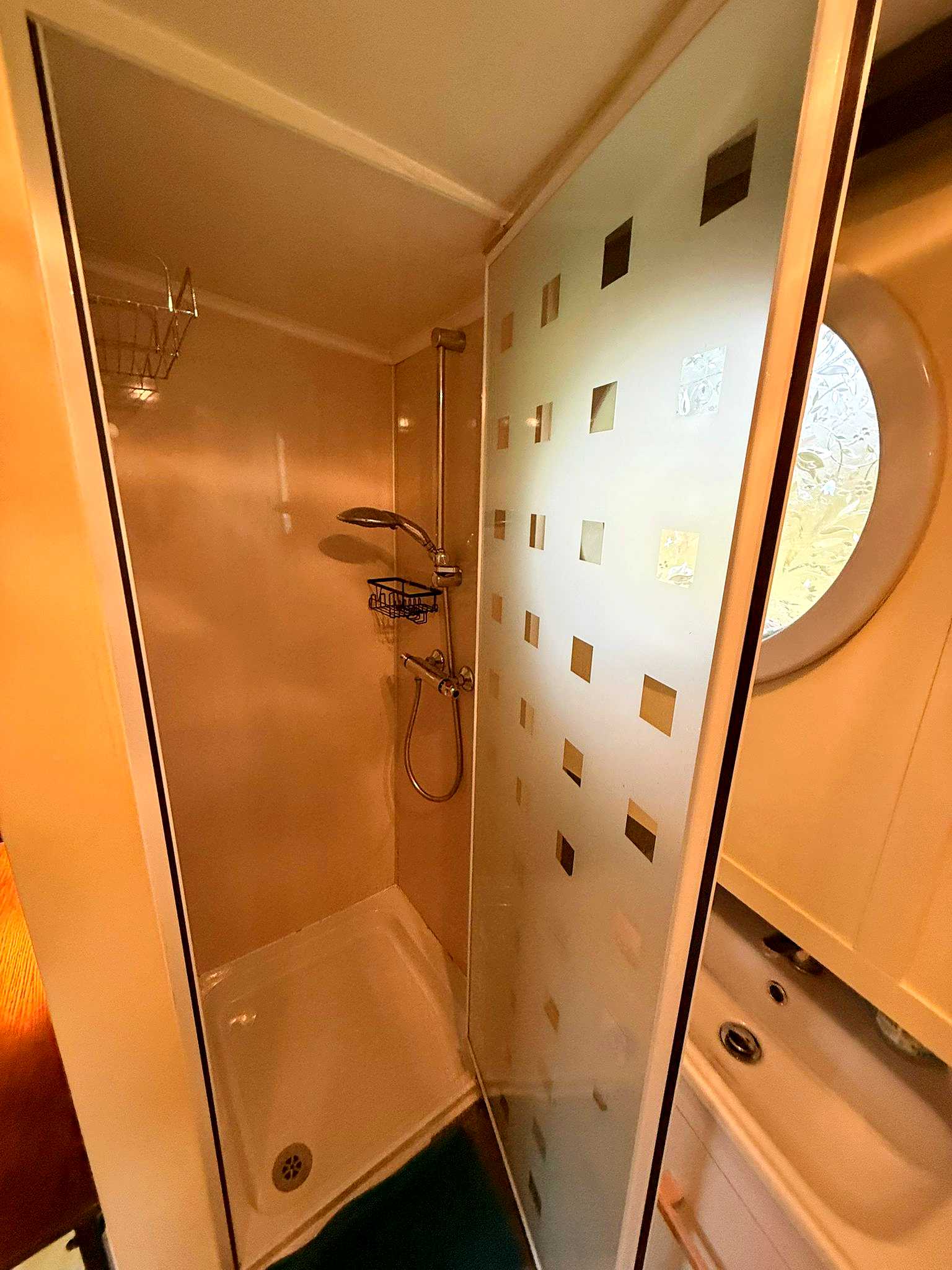

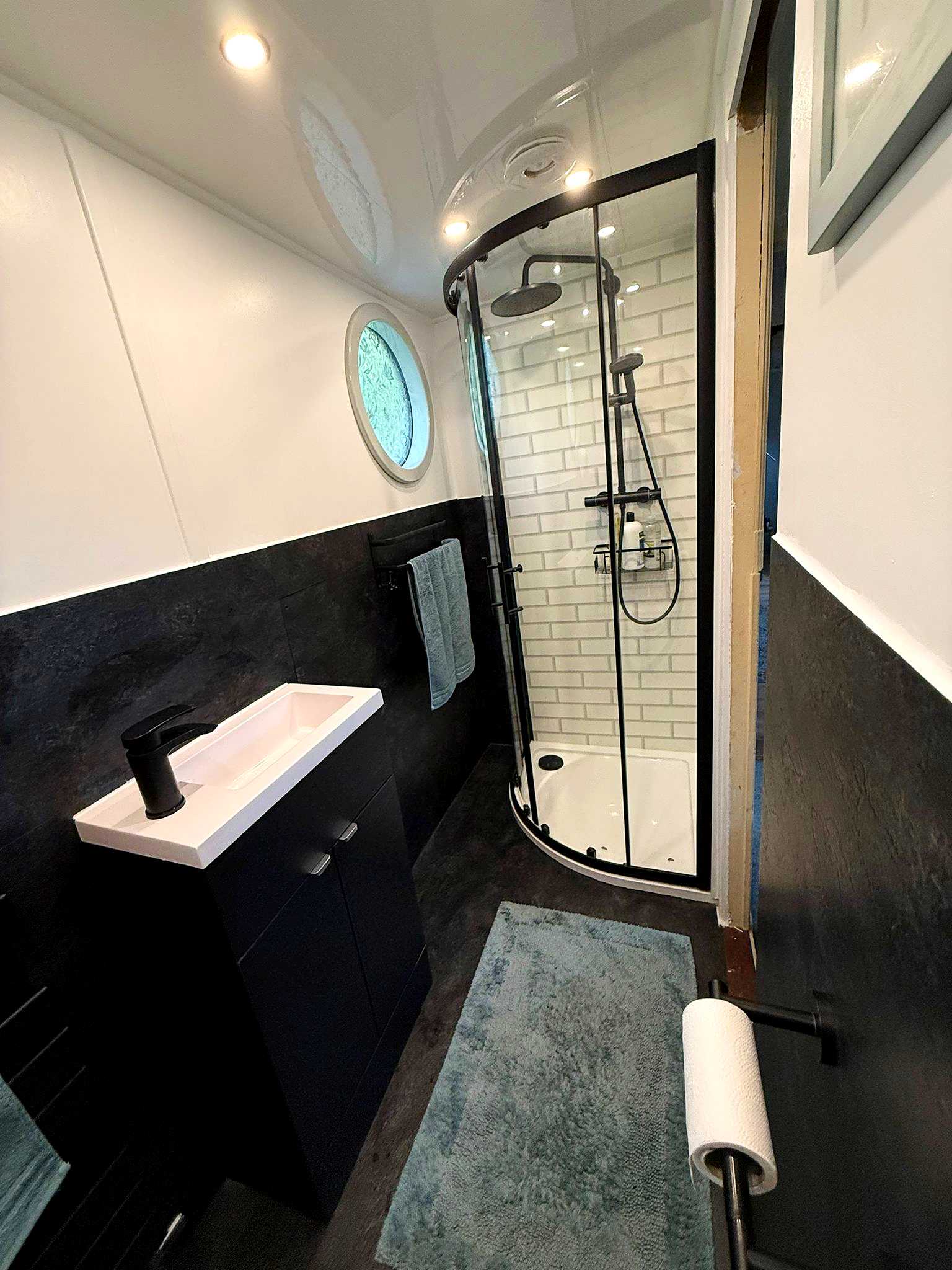

Shower: Yes - corner unit with twin head

Bath: No

Heated Towel Rail: Yes

Hand Basin: Yes

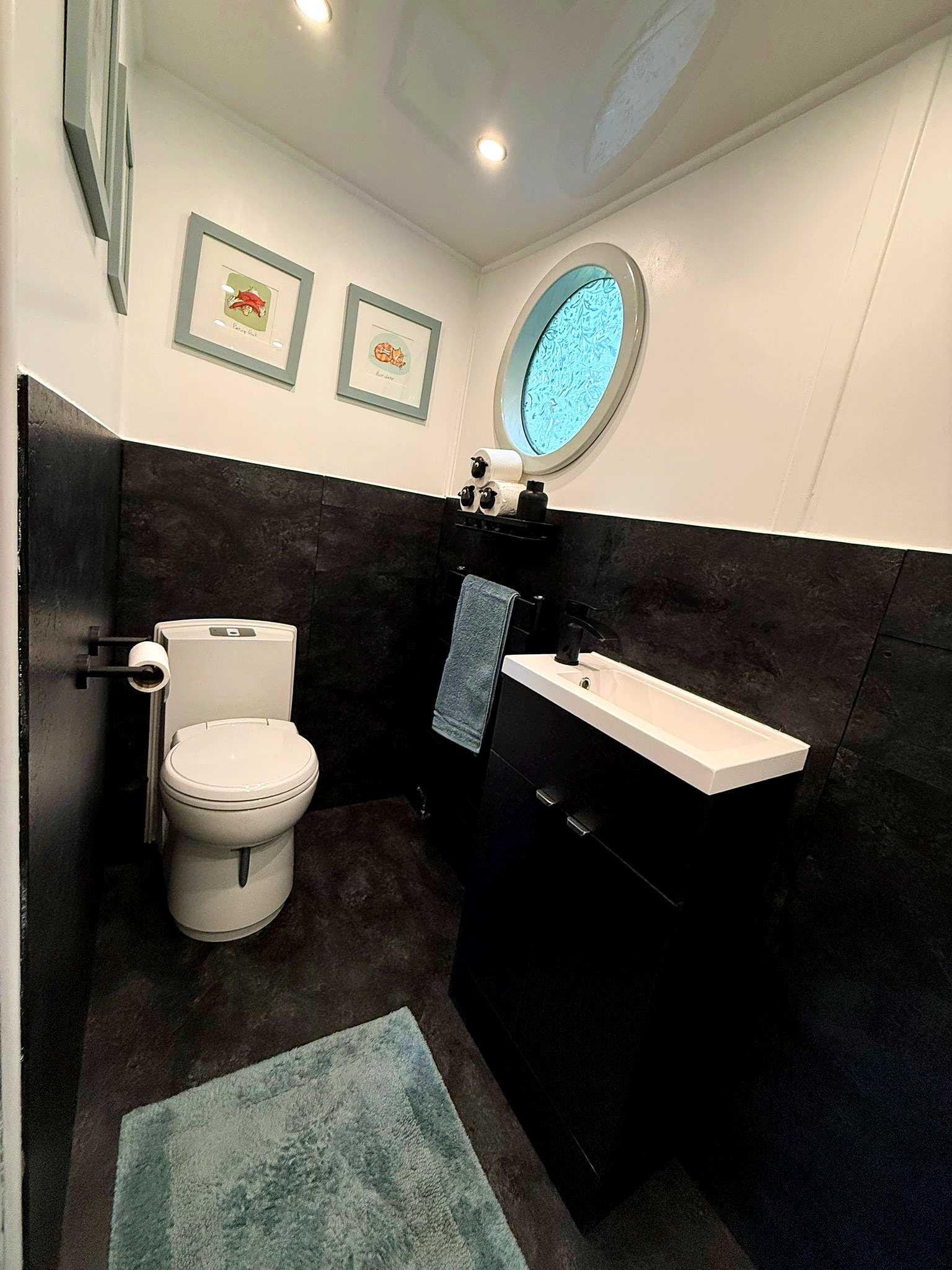

Toilet Type: Thetford Ceramic C260 series

Storage: 2 cassettes included

Notes: Bathroom installed March/April 2025. Shower drains via Whale Gulper. Second bathroom with gas shower and C200 toilet in place.

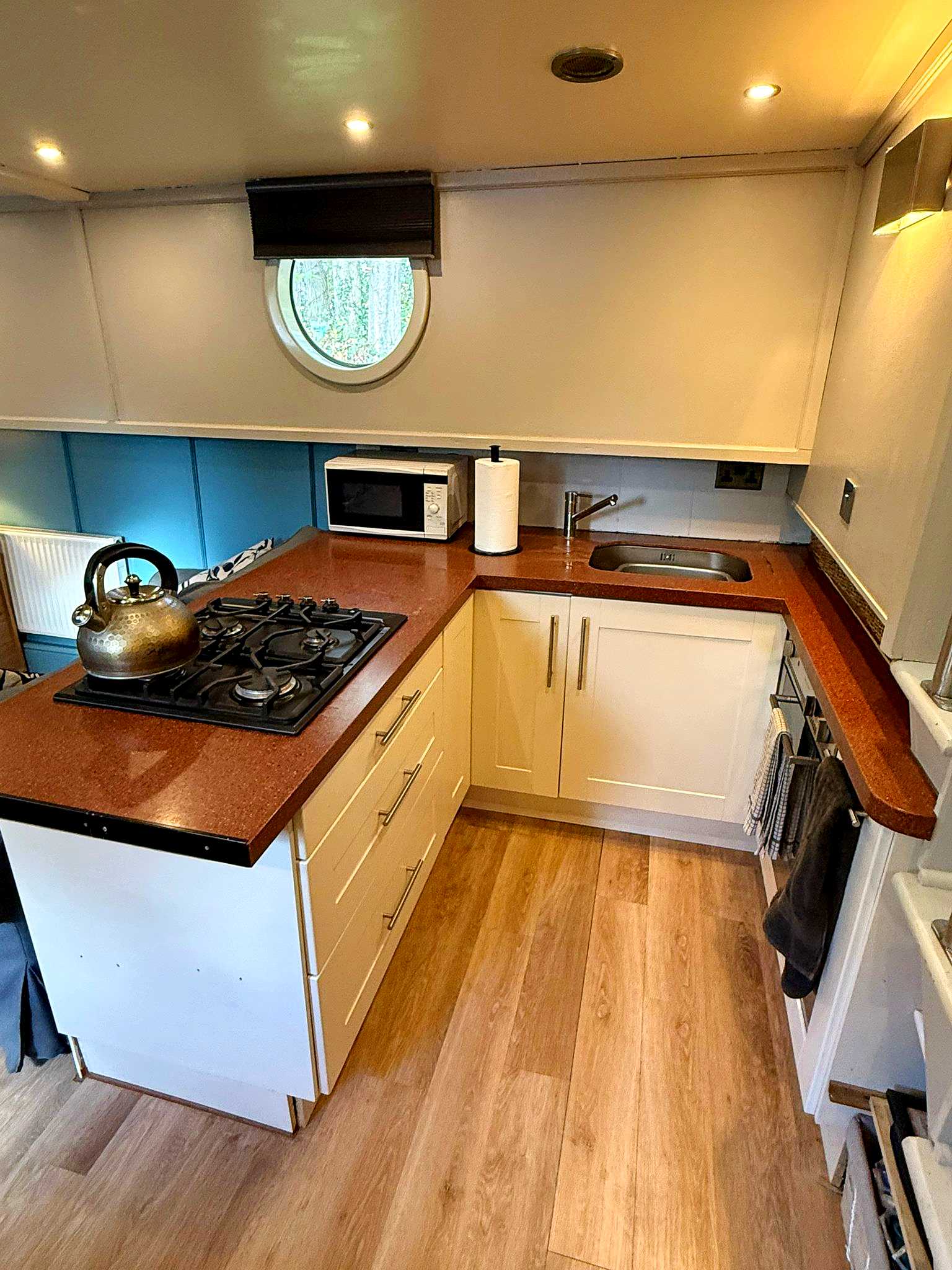

GALLEY

Cooker: Yes - NARDI Gas oven and separate 4 burner hob

Fridge: Yes - with freezer box

Freezer: No

Wine Cooler: No

Microwave: Yes

Washing Machine: Yes - Zanussi AquaCycle 1300

Dishwasher: No

Worktops: Laminate

Low Level Storage: 3 drawers and 3 cupboards

Upper Storage: Single wardrobe

Notes: Washing machine installed in cupboard in rear bedroom

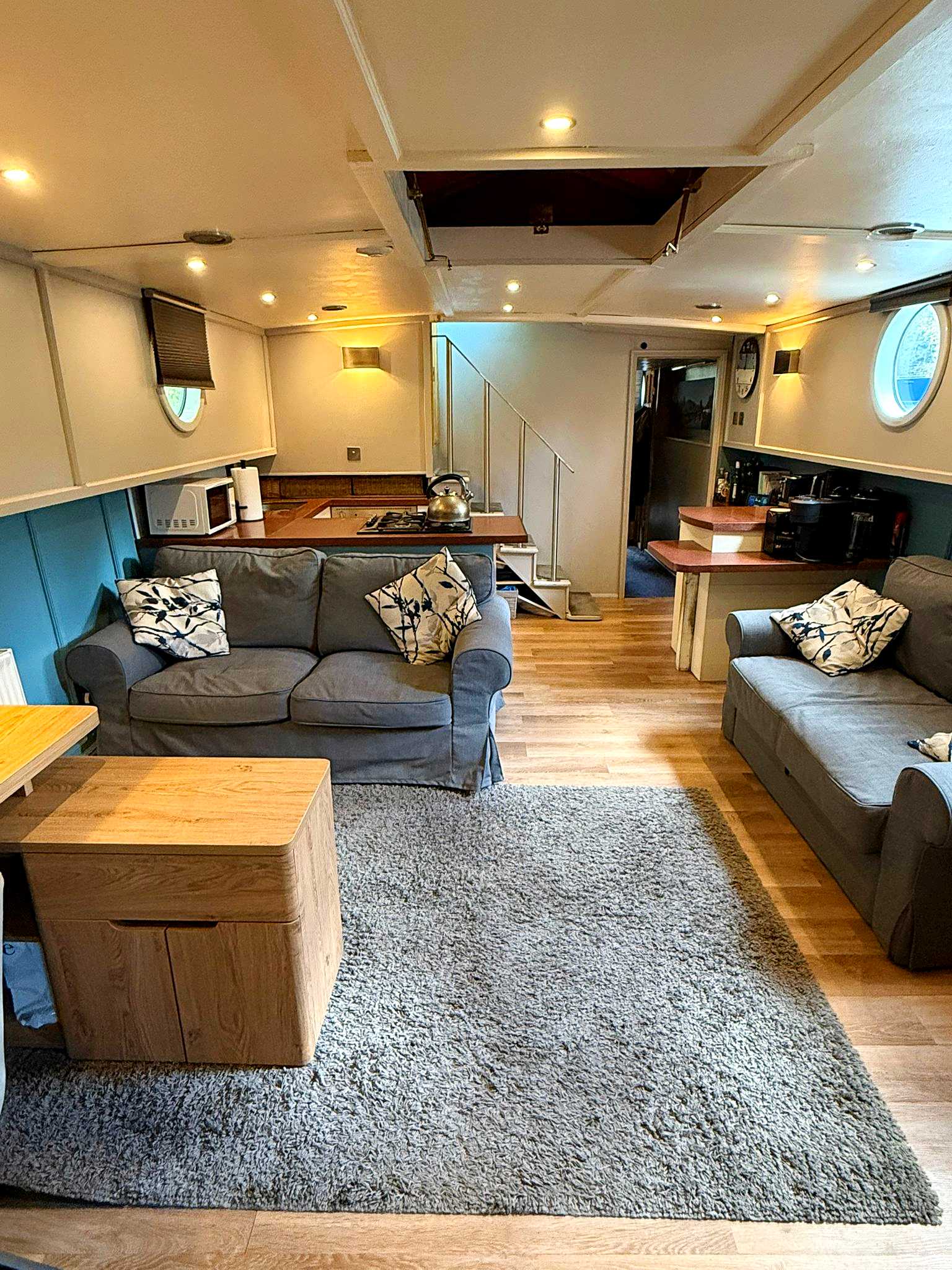

SALOON

Storage & Shelving: No

Seating: 1 couch and 1 sofa bed

TV: Subject to offer

Dinette: None

Heating: 1 radiator

Notes: Overhead double glazed 'dog box'

BEDROOM

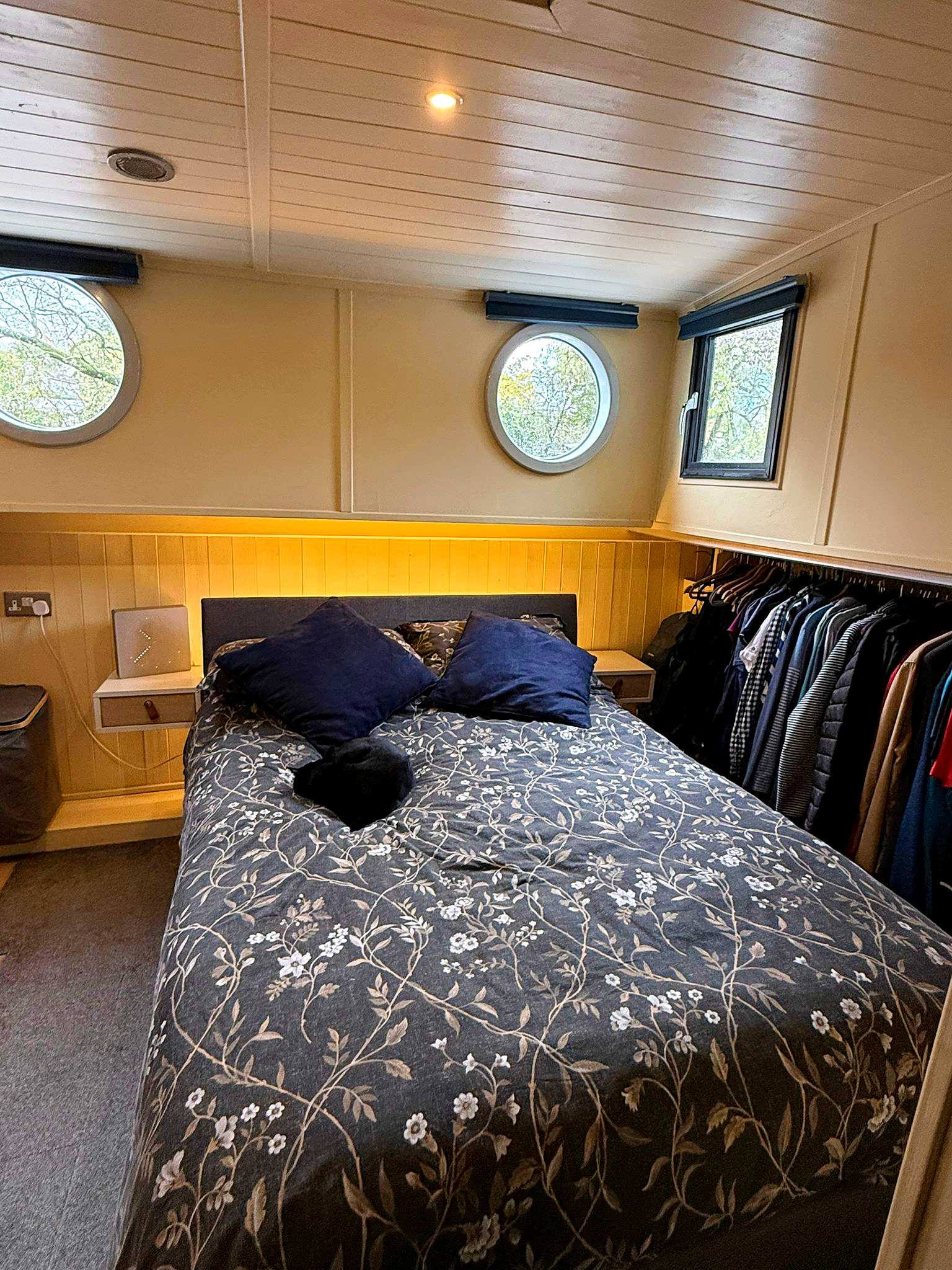

Bed Type: Double with lift up storage

Heating: 1 radiator

Dresser / Vanity Unit: No

Lower Storage: 2m clothes rail

Upper Storage: Single wardrobe

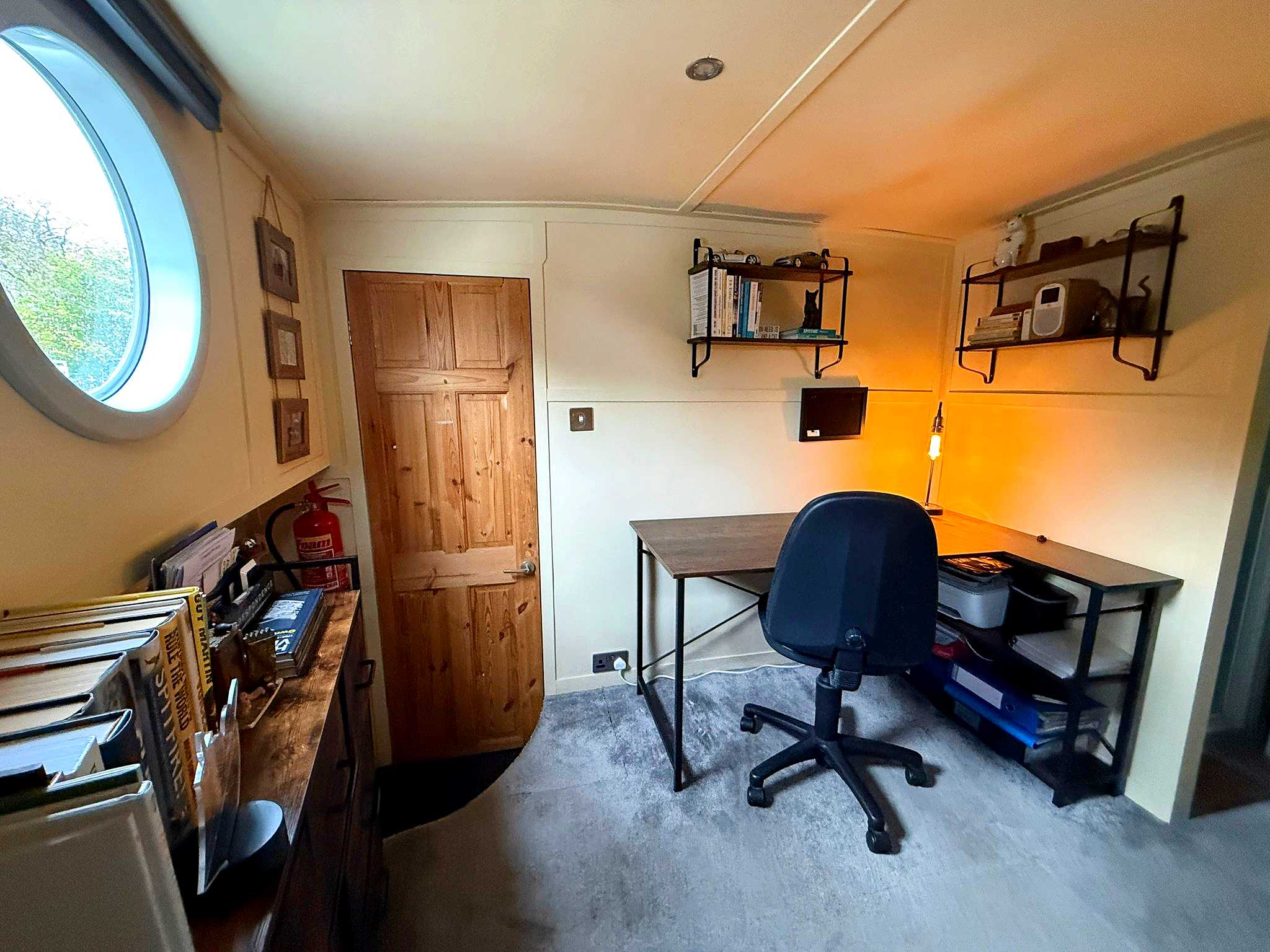

Notes: Second bedroom currently used as an office space, with escape hatch in rear

GENERAL

BSC Due Date: November 2027

Anodes Replaced: March 2024

Time With Owner: 18 Months

Last Engine Service: Will be completed prior to sale

Last Blacked: March 2024

No. of Previous Owners: Unknown

Notes: 2 x 13KG Calor bottles. Extensive storage in wheelhouse and forepeak on foredeck. Manual anchor with chain included.

Please note - These details are believed to be accurate, but cannot be guaranteed. They are based on information provided by the vendor and a visual inspection by Narrowboats LTD. We recommend that prospective purchasers satisfy themselves as to the condition of the boat, with an independent pre-purchase inspection and survey.
